Xhorse Multi-PROG universal programmer

Brand: XTooltech
Product Code: Multi-PROG
Availability: In Stock

$1 240.00

Reward Points: 849
Price in reward points: 800

0 reviews Write a review

Why do professionals
choose ECU Pro?

We perform fast worldwide shipping and PayPal payments

We provide a guarantee for products and technical support

Our system of discounts and regular promotions save your money

Description Write review

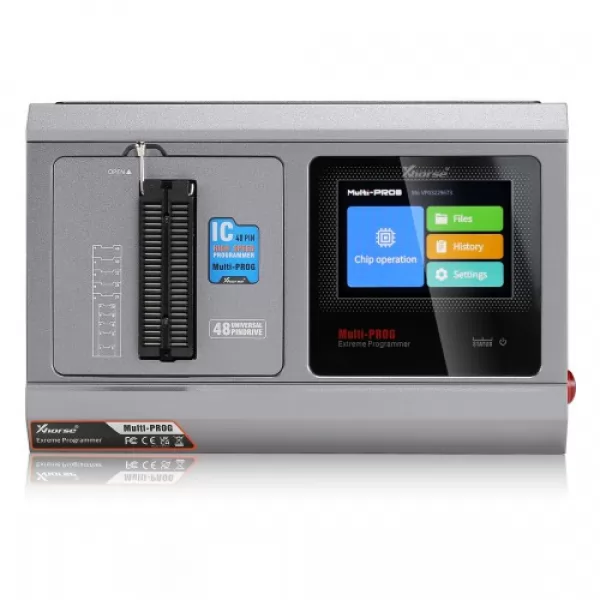

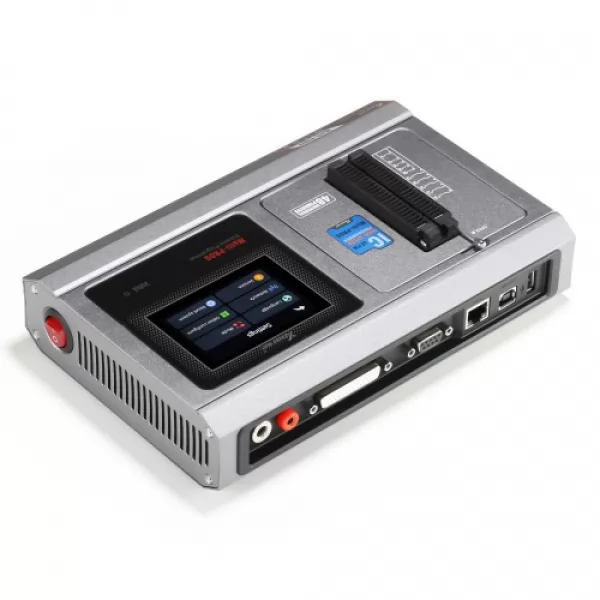

Xhorse Multi-PROG (XDMPG0GL) is a universal programmer for reading, writing and cloning engine control units (ECUs) and transmission control units (TCUs), as well as working with immobilizers, EEPROM, Flash and vehicle instrument clusters.

Main features

Read, write and clone ECUs and TCUs; process MED17 and EDC17 data.
The manufacturer also highlights BMW B48/B58 (ISN reading only), BMW MSD80/81/85/87/MSV90 and MSV80, Mercedes-Benz SIM271, VW Bosch MED17 and BMW N13/N20/N55/B38/TC17X, and support for Marelli, Siemens, Delphi and other ECU manufacturers.
Its summary TCU list names VW/Audi/Skoda DQ200, DQ250 and VL381, Porsche DL501, Ford/Dodge MPS6, BMW DKG and Mercedes-Benz VGS.
Work with EEPROM and Flash, Renesas, Motorola, NXP and Infineon microcontrollers, and certain encrypted chips.
Built-in device self-diagnostics, possible error-cause display and firmware updates. The product description mentions software version 1.0.9.0.
High-speed USB connection, reserved ports for future updates and USB power; the software requests an external USB power source when needed.
BMW ISN reading support, with additional functions announced as ongoing updates.
Immobilizer and dashboard work: listed systems include Porsche, Land Rover, Mercedes-Benz EZS, Volvo, VW MQB, Audi BCM2, BMW EWS/CAS/FEM/BDC, and instrument clusters for VW, Honda, Hyundai and Kia.
Compatible with solder-free Xhorse adapters and cables; supports expansion with third-party modules and data-processing services.

ECU compatibility in BENCH mode

VAG: SIMOS PCR2.1, EDC17C64; Bosch MG1CA811; MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED17.5.1, MED17.5.2, MED17.5.5_TC1766, MED17.5.5_TC1767, MED17.5.20, MED17.5.21, MED17.5.25; EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05; MG1CS002_SPC5777, MD1CP014_TC298TP, MG1CS001_SPC5777, MG1CS011_SPC5777, MG1CS002_TC298TP, MD1CP004_TC298TP, MD1CP004_SPC5777, MG1CS111_SPC5777, MD1CS004_TC298TP, MG1CS008_SPC5777, MG1CS008_TC298TP; Continental SIMOS8.3x, 8.4x, 8.5x and 8.6x.
BMW: Continental MSD80, MSV80, MSD81, MSD85, MSD87, MSV90; Bosch MD1CP002_SPC5777, MG1CS003_SPC5777 (B48/B58), MG1CS201_TC298TP (B38/B48/B58), MD1CS001_TC298TP, MG1CS024_TC298TP (B48/B58), MD1CP032_TC299; EDC17CP09_Fxx_TC1796, EDC17C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56; ME17.2.1; MEVD17.2.3, MEVD17.2_Fxx, MEVD17.2.4_Fxx (N20), MEVD17.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD17.2.P_Fxx, MEVD17.2.K; MEV17.2_TC1766, MEV17.2_TC1767, MEV17.2_TC1796, MEV17.2.1.
Mercedes-Benz: Continental SIM271 DE, SIM271 KE; Bosch ME17.7, MED17.7.3.1, MED17.7.1, MED17.7.2, MED17.7.3, ME17.7.8; EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60; CRD3x.x_TC1793, CRD3x.x_TC1797; MD1CP001_SPC5777, MG1CP002_SPC5777, MD1CS006_TC298TP.
GM: Delphi DCM3.7AP; Delco E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98.
Nissan: Denso 23740-3Nxxx Gen1 SH72531 and Bosch EDC17C84.
Hyundai/Kia: Bosch ME17.9.11, ME17.9.11.1, EDC17C53 and MEG17.9.12_ECU.
Ford: Bosch EDC17C70, EDC17CP65, ME17.0.3 and ME17.8.5. Volvo: Bosch EDC17CP48 (including ver.2) and EDC17CP22.
Other ECUs: AM_ME17.8.5, DOO_ME17.8.5; Bosch MG1CA007, ME17.8.8_TC1728, ME17.8.8_TC1728_HW2, ME17.8.8_TC1767, ME17.8.31, ME17.9.52; EDC17C55, EDC17C10, EDC17C10_TC1796, EDC17C10_TC1797, EDC17CP42, EDC17CP14, EDC17C81; MEVD17.8.4; MED17.8.10_TC1728, MED17.8.10_TC1728_Hw2, MED17.8.10_TC1767; MD1CS018, MG1CS026_SPC58, MG1CS032, MG1CS163, MD1CS012, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1CS015_TC277TP, MG1CS016_TC275TP, MG1CS017_TC277TP, MG1CS018, MG1CS019, MG1CS088; Continental SID208, SID209, SID211, SID807EVO; Denso KH, ZY, SH70xx_275xxx-xxx.

ECU compatibility in BOOT mode

VW: SIMOS PCR2.1, EDC17C64; Bosch MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED17.5.1, MED17.5.2, MED17.5.5_TC1766, MED17.5.5_TC1767, MED17.5.20, MED17.5.21, MED17.5.25; EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05; Continental SIMOS8.3x, 8.4x, 8.5x and 8.6x.
BMW: Continental MSD80, MSV80, MSD81, MSD85, MSD87, MSV90; Bosch EDC17CP09_Fxx_TC1796, EDC17C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56; ME17.2.1; MEVD17.2.3, MEVD17.2_Fxx, MEVD17.2.4_Fxx (N20), MEVD17.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD17.2.P_Fxx, MEVD17.2.K; MEV17.2_TC1766, MEV17.2_TC1767, MEV17.2_TC1796, MEV17.2.1.
Mercedes-Benz: Continental SIM271 DE, SIM271 KE; Bosch ME17.7, MED17.7.3.1, MED17.7.1, MED17.7.2, MED17.7.3, ME17.7.8; EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60; Delphi CRD2.x_MPC556x.
Nissan: Bosch EDC17C84. GM: Delphi MT80/MT80.1 and listed Delco E37–E98 units. Hyundai/Kia: Delphi MT86 and Delco DCM6.2AP.
Other ECUs: Continental SID208/SID209/SID211/SID807EVO/SID310, SDI21.1/21.2/21.3, Bosch ME17.3.0, Marelli 8DF and MM10JA.

TCU compatibility

BENCH: VW DL382, VL381, DL501 Gen1/Gen2, DQ200 (Dxx, G2, G2_PQ, MQB), DQ250 (MQB); Porsche DL501; BMW GETRAG DKG 436 Gen1/Gen2; Mercedes-Benz VGS-FDCT, VGS2-FCVT, VGS2-FDCT; Ford GETRAG MPS6, DPS6 and DC4; other listed TCU: ZF 9HP.
BOOT: Ford DPS6 and DC4.

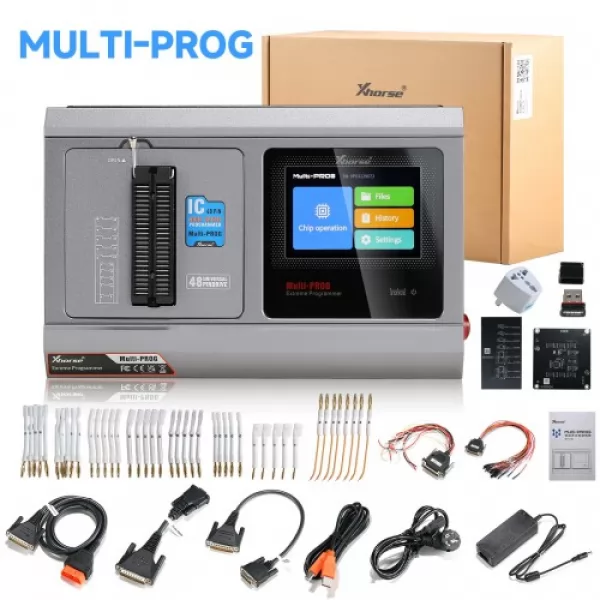

Package contents

Multi-PROG main unit with VH13 adapter.
Power, USB, MCU DB15, MCU, ECU, OBD and ECU DB15 cables.
VH24 and VH20 adapter boards, power adapter and five spare ECU harness connector parts.

Note: supported ECU/TCU coverage is regularly updated. Before purchase and connection, verify the exact ECU/TCU number, hardware and software versions, selected mode and required adapters against current Xhorse documentation.
