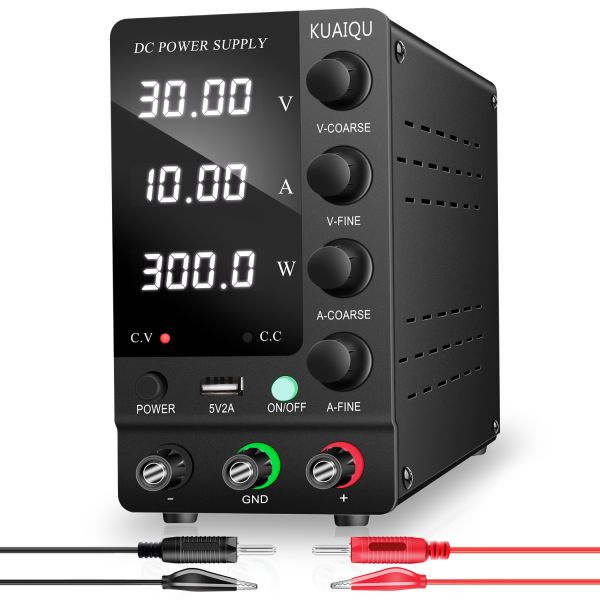

KUAIQU SPS-C3010 bench power supply

KUAIQU SPS-C3010 is a single-channel switching bench power supply with an adjustable output of up to 30V and 10A and a maximum output power of 300W. It provides adjustable DC power for electronics testing, automotive electrical components and control units on the workbench.

Key features

• Adjustable output voltage from 0 to 30V and current from 0 to 10A; maximum output power is 300W.
• Constant-voltage (CV) and constant-current (CC) operation, with automatic transition according to the load.

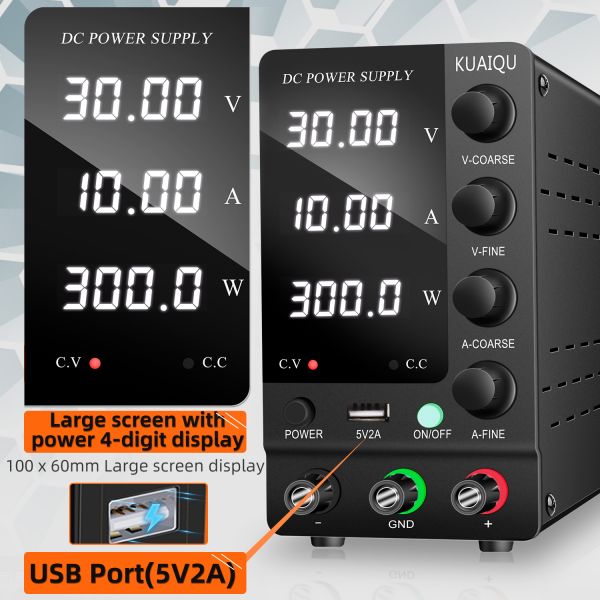

• Digital readouts display output voltage, current and power.

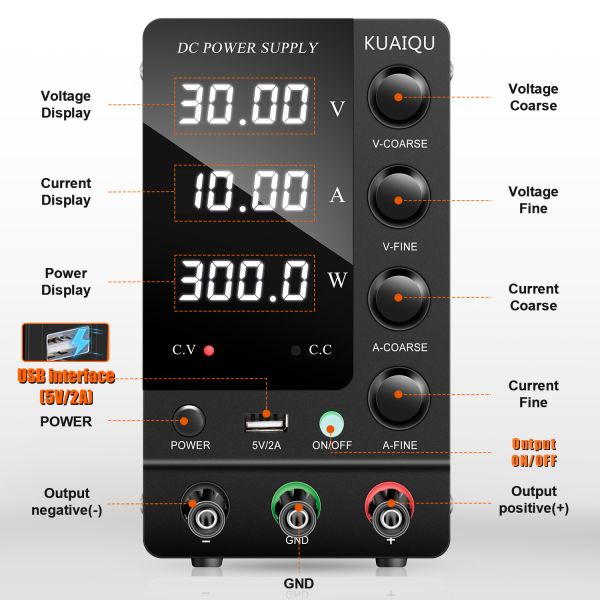

• Separate coarse and fine controls for voltage and current allow quick setup followed by precise adjustment.

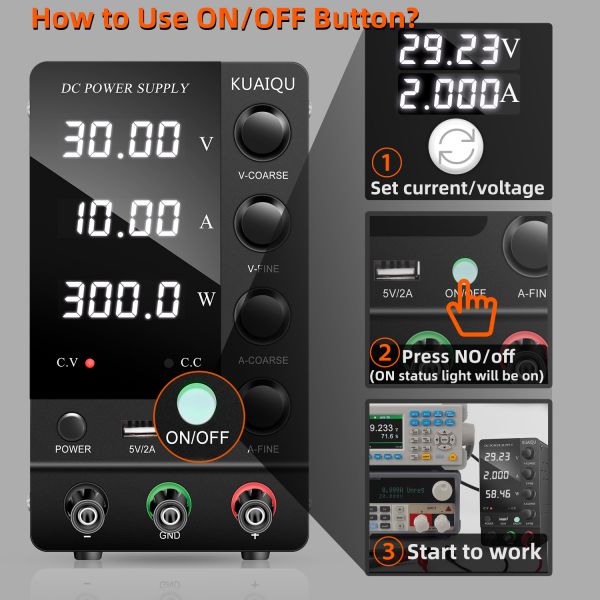

• The output switch lets the operator set parameters before applying power to the connected load.
• Built-in fixed USB output: 5V / 2A for compatible devices and accessories.

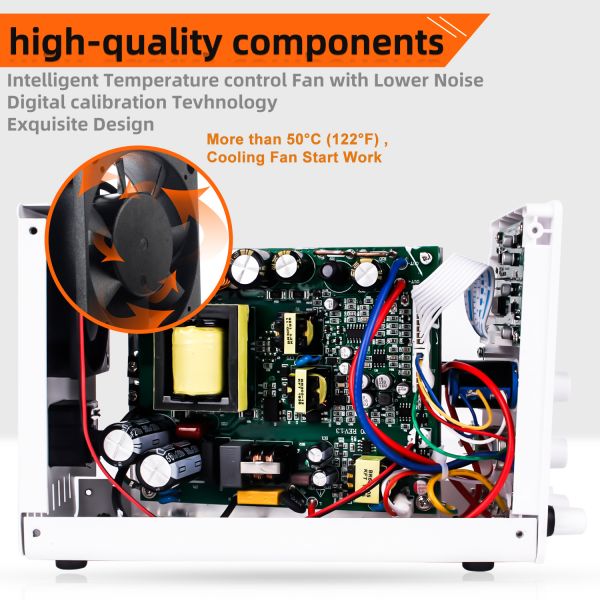

• A temperature-controlled fan removes heat; the manufacturer describes the unit as compact and low-noise.

Specifications

• Model: SPS-C3010, white housing.
• Type: single-channel adjustable switching DC power supply.
• Output voltage: 0–30V.
• Output current: 0–10A.
• Maximum output power: 300W.
• Adjustment resolution stated by the manufacturer: 0.1V for voltage and 0.01A for current.
• USB output: fixed 5V / 2A.

Applications

• Testing automotive electronics and low-voltage 12V/24V circuits.
• Supplying adjustable power to ECUs, electronic modules and individual components during bench diagnostics.
• Electronics repair, laboratory work and production-line testing.
• Testing and charging batteries and battery packs within their permitted voltage and current limits.
• Testing DC motors, actuators and other DC loads within their electrical ratings.
